Magnesium V3

Moved By Mg

The Mg (Magnesium) IEM utilizes a high magnesium content alloy (96% pure) for the diaphragm material. Magnesium may be the lowest cost IEM in our stable but it by no means a slouch, earning the coveted Top Pick from Stereo Review.  High performance, affordable price, extreme comfort make a potent combination.

Magnesium is the least dense of all stable metals.  Magnesium is also very high on the stiffness-to-weight ratio, and that is why it’s used in automotive and aerospace applications.  These two properties result in a highly efficient, low distortion transducer foundation.

Still not sure that this IEM is for you?  Then use our amazing Select-A-Tron to guide your IEM choice!

I See a Detachable Cable?  What’s That About?

We have also developed our own 2.5mm jack: the IDEEL connector.  This connector is the world’s smallest 2.5mm jack, measuring just 3.6mm across, and a tiny 9.5mm mounting depth. This jack allows us to use the very robust 2.5mm TS plug in our tiny IEMs.  No more delicate MMCX or difficult 2 pin plastic connectors needed.

Mechanical Elements

Transducer Diaphragm: 96% pure Magnesium foil

Transducer Surround: PEEK polymer

Transducer Frame: 316 Stainless Steel

Transducer Magnet: N48H Grade Neodymium

Enclosure Body: Tritan™ copolyester

Protective Grille: 316 Stainless Steel

Bonding Compound: Cyanoacrylate Adhesive

Sealant Compound: Polyvinyl Acetate

Mounting Tips: Medical Grade Silicone and Urethanes

Connector: IDEEL 2.5mm TS compatible connector (tip hot, sleeve ground)

All components are Finite Element Analyzed for stress, strain, and durability.

Specifications

Performance

Frequency Response

20 Hz to 30 kHz

Impedance

32 Ohms nominal

Sensitivity

101 dB SPL at 1mW in ear

Power Handling

200 mW continuous

Peak SPL

124 dB

THD

Less than 1.5% THD at 1mW

Physical Properties

Cable Length

1.2 m

Mass

2.8 / 16.7 g (IEM/Set)

Operational Temperature

-20 to +50° C

Operational Humidity

0-95% Relative Humidity

NRR

31.3 dB (foam eartrip)

Overall Length

21 mm

Body Diameter

12 mm

Nozzle Diameter

6 mm

Mg Material Properties

Melting Point

922 Kelvin

Speed of Sound

4940 meters per second

Young's Modulus

45 Gigapascals

Brinell Hardness

260 Megapascals

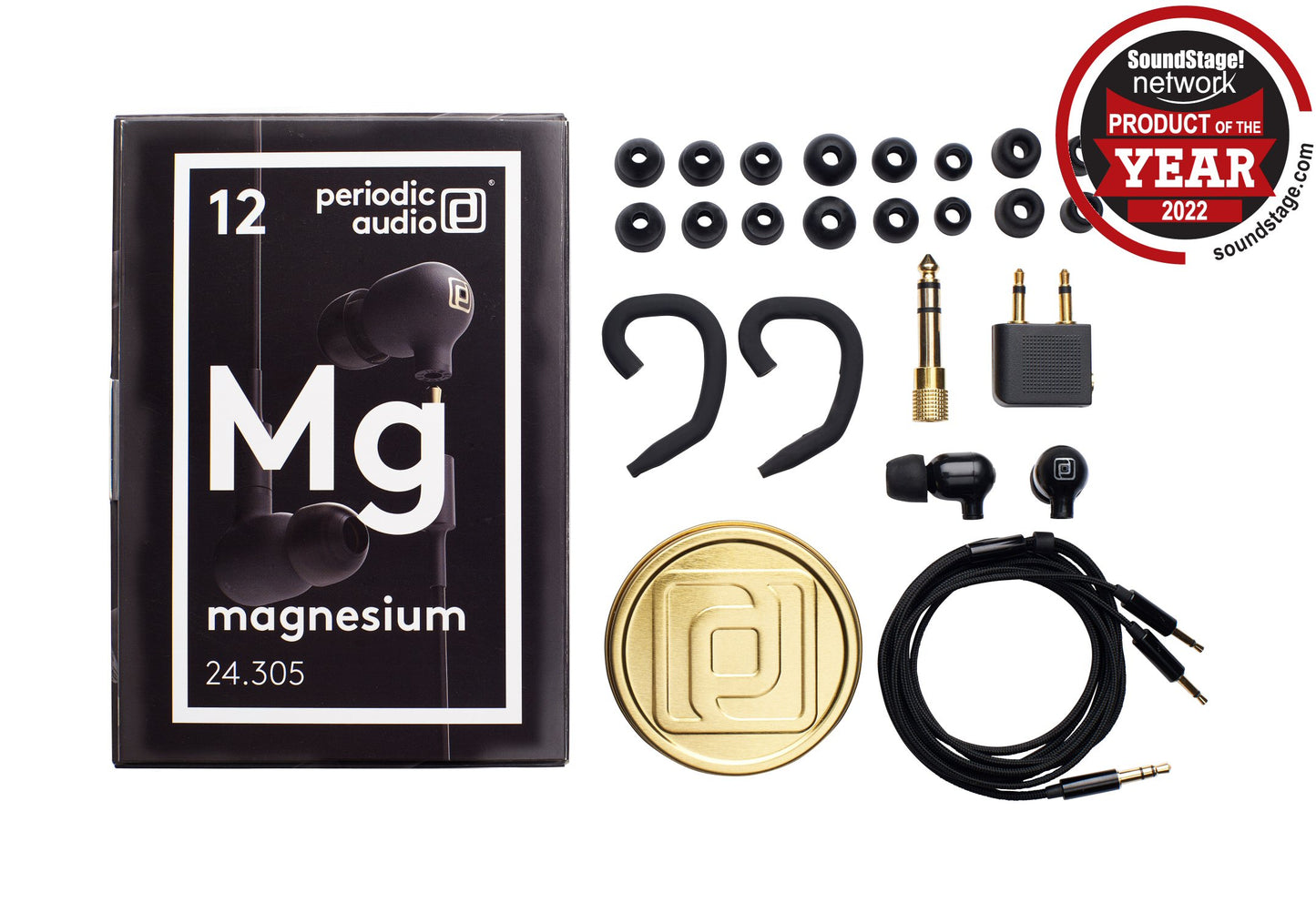

Included Accessories

1.2 meter long cable single 3.5mm TRS to dual 2.5mm TS jack and metal shells

Single Flange Tips – Small, Medium, Large

Dual Flange Tips – Small, Medium, Large

Memory Foam Tips – Small, Medium, Large

Protective Travel Case

Gold Plated ¼” TRS Adapter Jack

Gold Plated Dual Mono Airplane Adapter

Warranty lasts for five (5) years in the United States.

Warranty lasts for two (2) years in all other Countries.

Please see the Warranty page for full details.
