Titanium V3
Description
Description
Tiptoe With The Ti
Ti (Titanium) is our “just plain fun” IEM. In your face. Kick in the pants. Boogie down or bang the head. Ti does it all. This isn’t your 3 piece jazz ensemble IEM. This is a full-on, blast your face rock concert. It’s a thunderous EDM club. It’s reggae all day long.
Titanium is widely used in aerospace and high-performance applications because of its unique mix of extreme strength and stability with moderate weight, giving it one of the best stiffness-to-weight ratio of all structural metals.
Still not sure that this IEM is for you? Then use our amazing Select-A-Tron to guide your IEM choice!
Nerd Layer
Nerd Layer
What’s New With the Ti?
We’ve done a few great changes to Ti – and the whole line – to improve performance and user experience. This starts with a new material for the entire enclosure. We worked for 3 years with Eastman Chemicals, one of the largest plastics companies in the world, to research, develop, and quantify new polymers for acoustic applications.
Our research led us to a specific blend of their Tritan™ copolymer. This material proved to be not just rigid, but acoustically dead with lower energy storage and transmission than the polycarbonate we were using. Stray resonance and noise is lowered even more.
We also refined the external and internal geometry to make it more anti-resonant, so clarity is increased alongside the improvements of the materials used. The result is the most stable, lowest resonant IEM enclosure ever made. All with the lowest weight enclosure possible.
I See a Detachable Cable? What’s That About?
We have also developed our own 2.5mm jack: the IDEEL connector. This connector is the world’s smallest 2.5mm jack, measuring just 3.6mm across, and a tiny 9.5mm mounting depth. This jack allows us to use the very robust 2.5mm TS plug in our tiny IEMs. No more delicate MMCX or difficult 2 pin plastic connectors needed.
Mechanical Elements
Transducer Diaphragm: Pure Titanium foil
Transducer Surround: PEEK polymer
Transducer Frame: 316 Stainless Steel
Transducer Magnet: N48H Grade Neodymium
Enclosure Body: Tritan™ copolyester
Protective Grille: 316 Stainless Steel
Bonding Compound: Cyanoacrylate Adhesive
Sealant Compound: Polyvinyl Acetate
Mounting Tips: Medical Grade Silicone and Urethanes
Connector: IDEEL 2.5mm TS compatible connector (tip hot, sleeve ground)
All components are Finite Element Analyzed for stress, strain, and durability.
Included Accessories

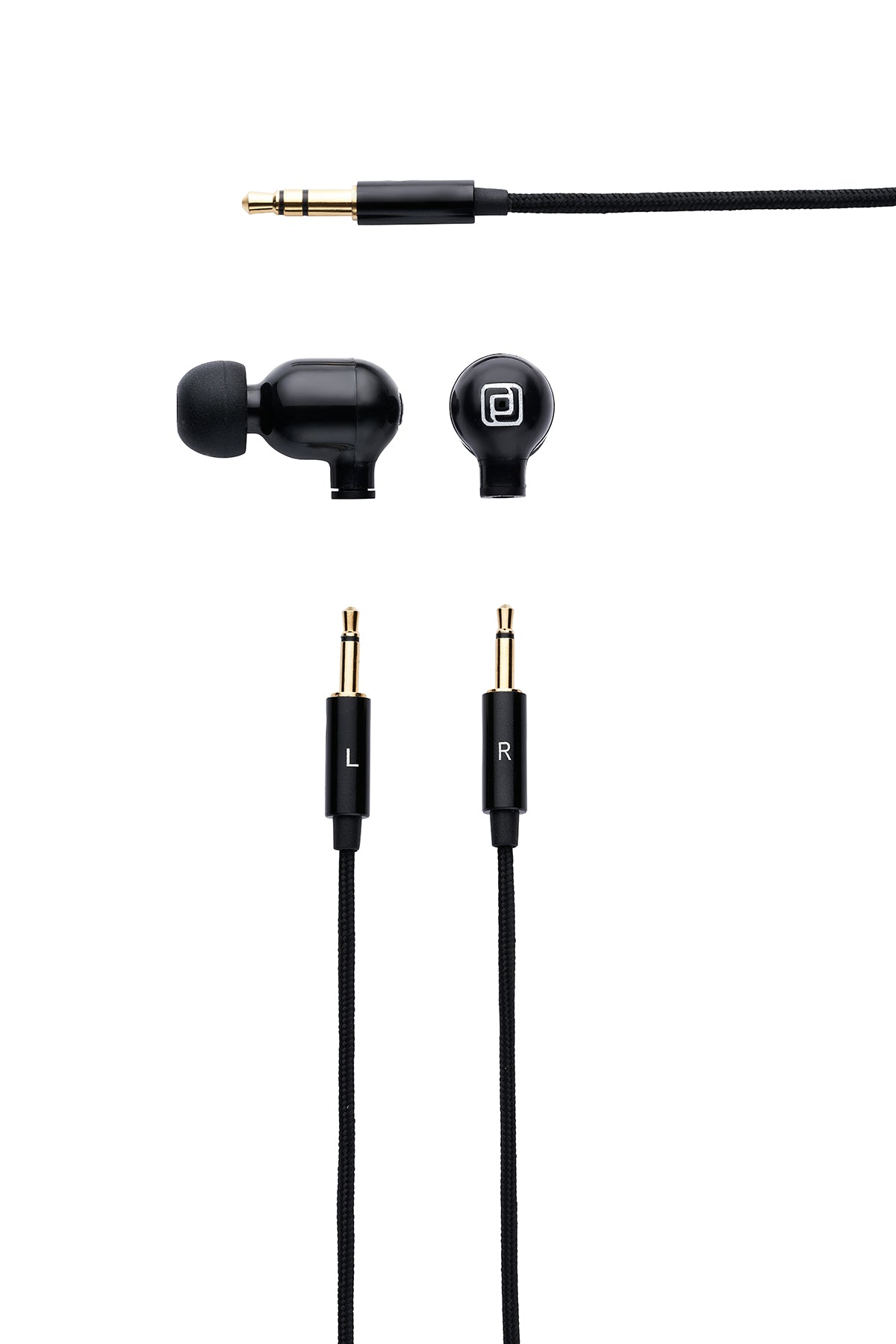

1.2 meter long cable single 3.5mm TRS to dual 2.5mm TS jack and metal shells
Single Flange Tips – Small, Medium, Large
Dual Flange Tips – Small, Medium, Large
Memory Foam Tips – Small, Medium, Large

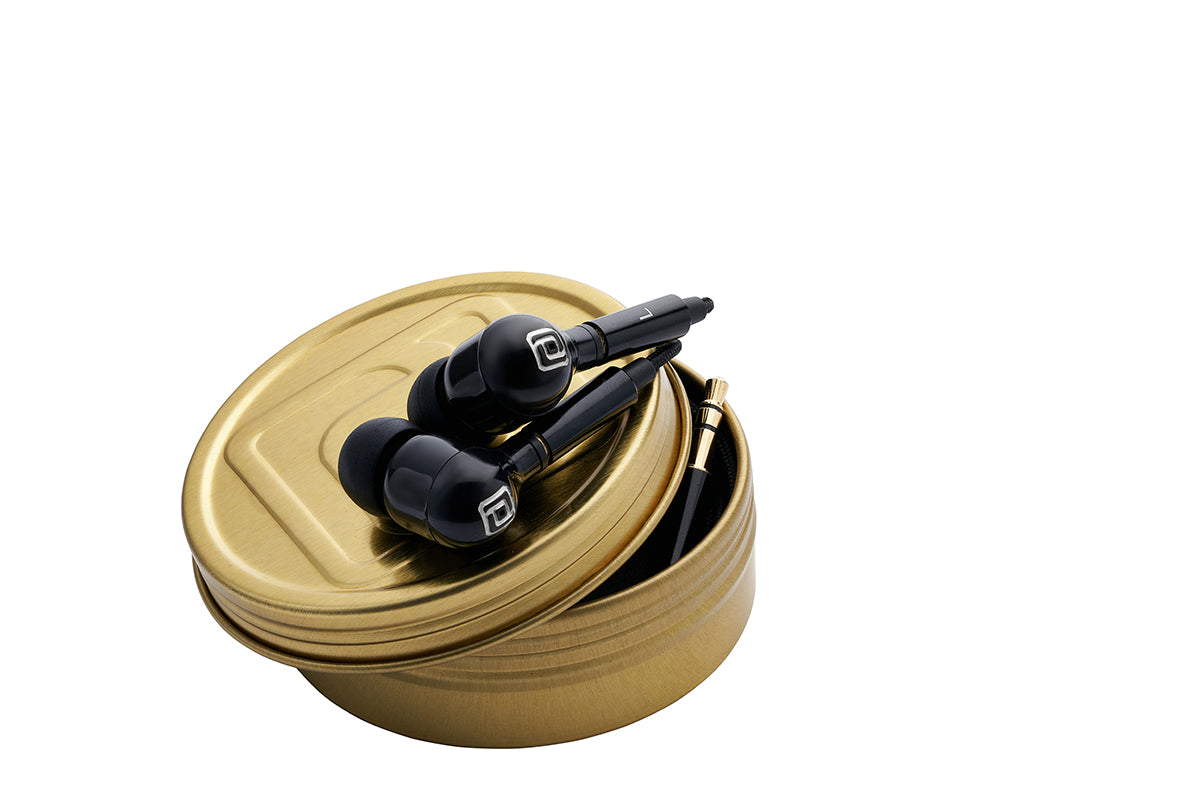

Protective Travel Case
Gold Plated ¼” TRS Adapter Jack
Gold Plated Dual Mono Airplane Adapter
Specs
Specs
Specifications
Performance

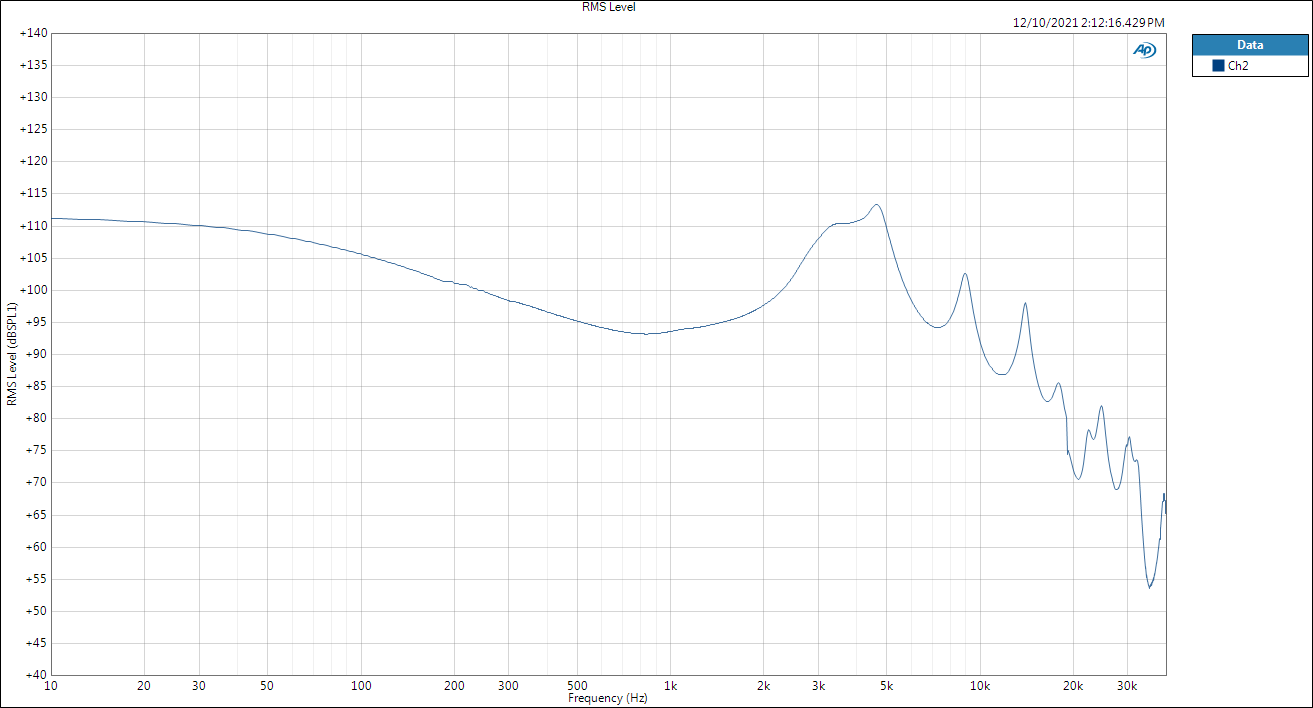

Frequency Response
16 Hz to 30 kHz

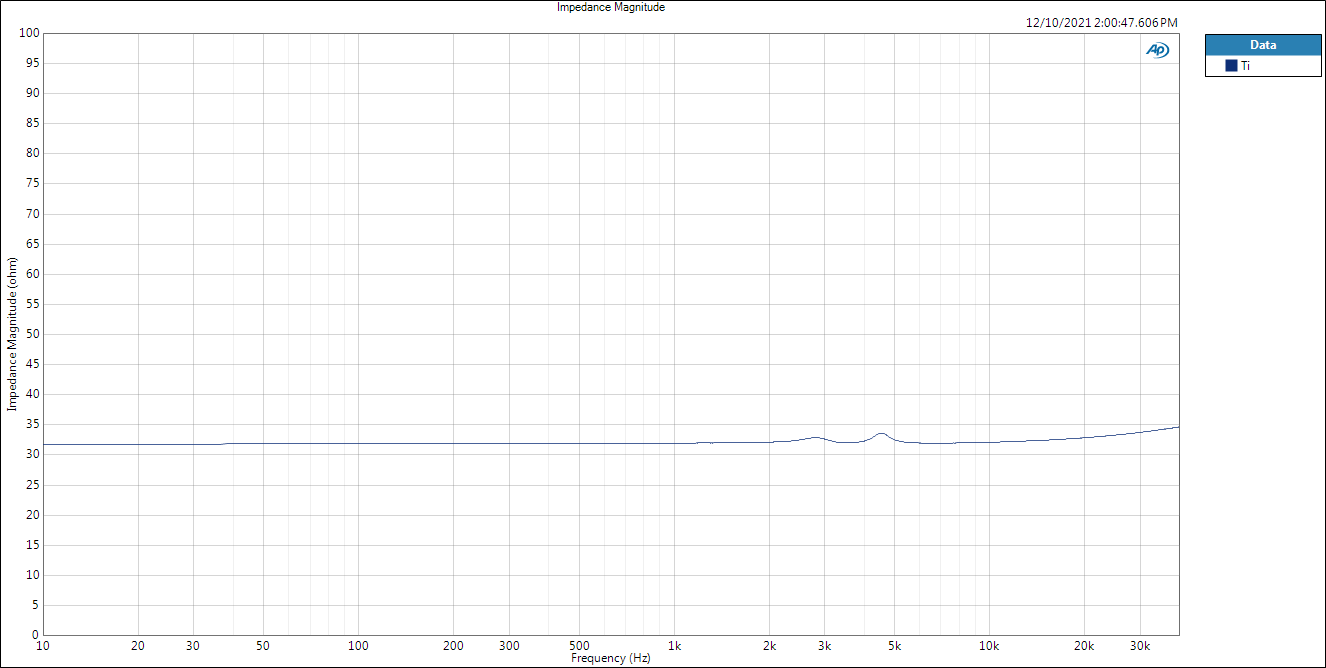

Impedance
32 Ohms nominal
Sensitivity
96 dB SPL at 1mW in ear
Power Handling
200 mW continuous
Peak SPL
119 dB

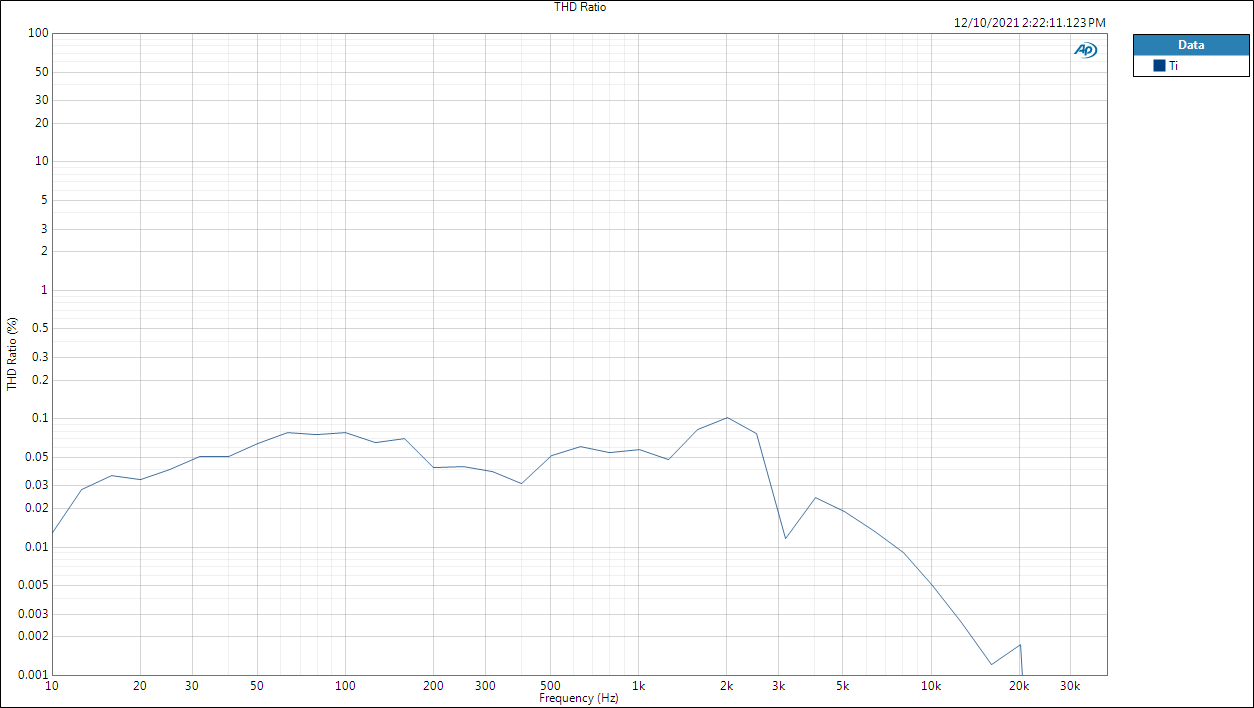

THD
Less than 1.5% THD at 1mW
Physical Properties
Cable Length
1.2 m
Mass
2.8 / 16.7 g (IEM/Set)
Operational Temperature
-20 to +50° C
Operational Humidity
0-95% Relative Humidity
NRR
31.3 dB (foam eartrip)
Overall Length
21 mm
Body Diameter
12 mm
Nozzle Diameter
6 mm
Ti Material Properties
Melting Point
1941 Kelvin
Speed of Sound
5090 meters per second
Young's Modulus
116 Gigapascals
Brinell Hardness
2770 Megapascals
Whats in the box
Whats in the box
Included Accessories
1.2 meter long cable single 3.5mm TRS to dual 2.5mm TS jack and metal shells
Single Flange Tips – Small, Medium, Large
Dual Flange Tips – Small, Medium, Large
Memory Foam Tips – Small, Medium, Large
Protective Travel Case
Gold Plated ¼” TRS Adapter Jack
Gold Plated Dual Mono Airplane Adapter
Warranty
Warranty
Warranty lasts for five (5) years in the United States.
Warranty lasts for two (2) years in all other Countries.
Please see the Warranty page for full details.
